Atex Plug Ex d/e Nickel-Plated Blind NPT Thread

Plugs Ex d/e blind  NPT thread Atex  IP66 - IP68. Operating temperature of -60°C to + 200°C.

Atex Plug Ex d/e Nickel-Plated Blind NPT Thread · GlakorGlakor
Atex Plug Ex d/e Nickel-Plated Blind NPT Thread · GlakorGlakor

This product has the following certificates

  • Logo IECEx · Glakor
    IECEx
  • Logo IP68 · Glakor
    IP68
  • Logo 5 year anti-corrosion · Glakor
    5 year anti-corrosion
  • Logo Chemical resistant · Glakor
    Chemical resistant
  • Logo Corrosion resistant · Glakor
    Corrosion resistant
  • Logo Easy to clean · Glakor
    Easy to clean
  • Logo Scrach resistant · Glakor
    Scrach resistant
  • Logo Waterproof · Glakor
    Waterproof

Description

Plugs Ex d/e blind metric thread. Operating temperature of -60°C to + 200°C.

Material:

  • Nickel-plated brass
  • Stainless steel AISI303L
  • Stainless steel AISI304L
  • Stainless steel AISI316L

O-ring: NBR

Thread:

  • Entry
  • Conic

Protection class: EN 60529 IP66 / IP68

Operating temperature of -60°C to + 200°C.

Normative

Normative and marking:

  • II 2G Exd/e IIC Gb II 2D Ex tb IIIC Db I M2 Ex d/e I Mb
  • EN 60079-0 2009 /60079-1 2007/ 60079-31 2009

Protection class: EN 60529 IP66 / IP68
Application area: Zones 1, 2, 21 and 22 and Group Gas IIA, IIB and IIC
Temperature range: -60°C to +200°C

Custom Made Solutions
We offer multiple solutions

Atex Plug Ex d/e Nickel-Plated Blind NPT Thread · Glakor
Do you need solutions?
2024 product catalogues

Material:

  • Nickel-plated brass
  • Stainless steel AISI303L
  • Stainless steel AISI304L
  • Stainless steel AISI316L

Thread:

  • Entry
  • Conic
Atex Plug Ex d/e Nickel-Plated Blind NPT Thread · Glakor

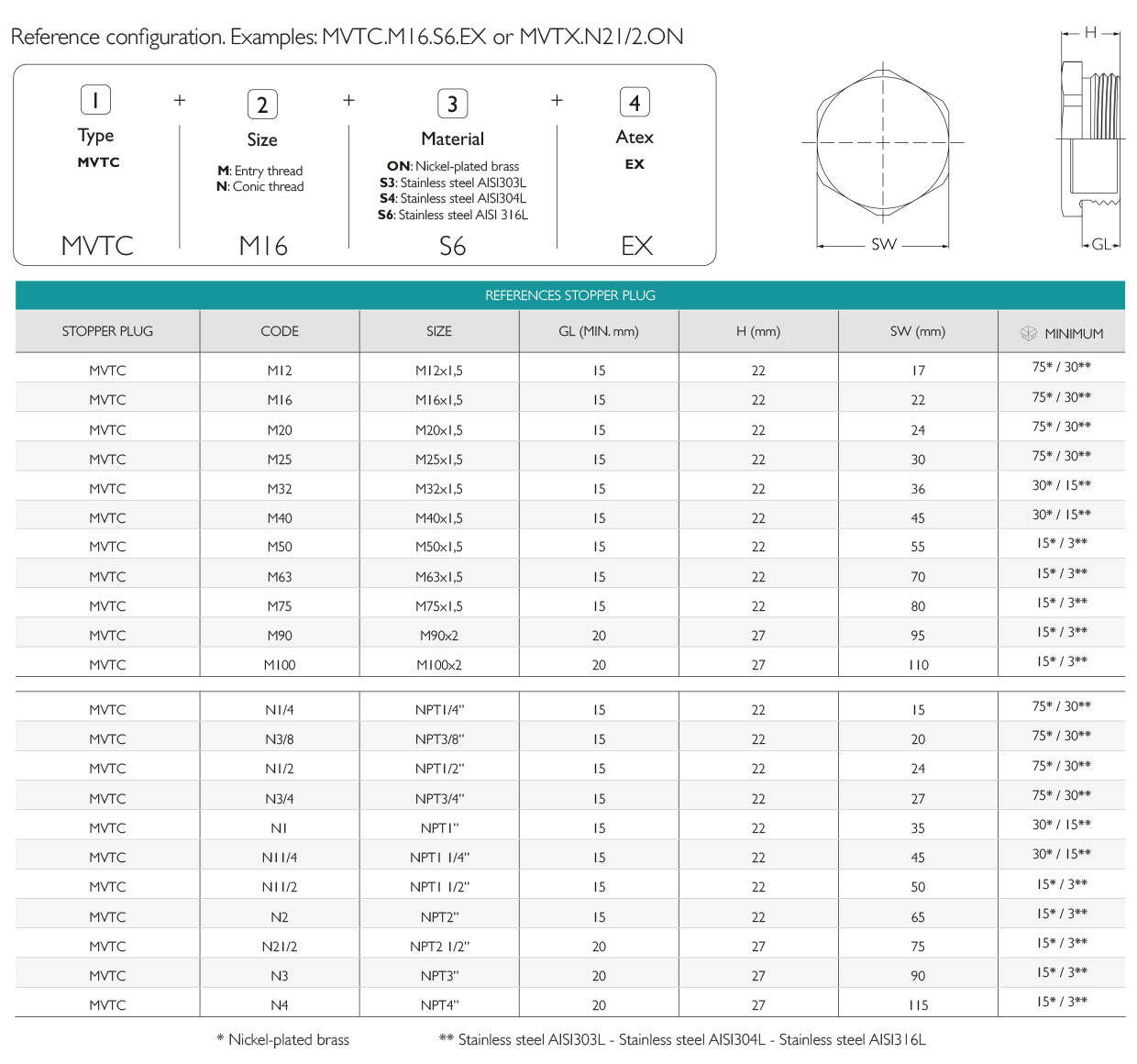

Sketches

Atex Plug Ex d/e Nickel-Plated Blind NPT Thread · Glakor
